The Zircon 30"
zir30.jpg - 24623 BytesModern in design, this conical shaped fireplace radiates warmth and cheer into the room. Available in matte black and 10 beautiful porcelain colors. Includes lift-off screen, two sections of 7" x 24" pipe, one 7" x 30" pipe, and 4 bags Malm refractory.
May be used with optional M-16 Grate.
Tested to UL737 & ULC-S627-00
Listed By LabTest Tested to U/L Standards Tested to UL737 & ULC-S627-00 Certifi ed for use in USA & Canada Certifi é pour une utilisation aux Etats-Unis et Canada




The Zircon 34"
zir34wood.jpg - 14661 BytesA larger version of the 30" Zircon, Available in matte black and beautiful porcelain colors. Includes lift-off screen, three sections of 8 x 24" pipe.
May be used with optional M-16 Grate.

Tested to UL737 & ULC-S627-00
Listed By LabTest Tested to U/L Standards Tested to UL737 & ULC-S627-00 Certifi ed for use in USA & Canada Certifi é pour une utilisation aux Etats-Unis et Canada

Tested to U/L Standards 737


The Zircon 38"
zir38alm.jpg - 25599 BytesThe largest of the Zircons, Available in matte black only. Includes lift-off screen, three sections of 9 x 24" pipe, and 10 bags of Malm refractory. Includes 9" to 10" adapter
May be used with optional M-20 Grate.

Tested to UL737 & ULC-S627-00
Listed By LabTest Tested to U/L Standards Tested to UL737 & ULC-S627-00 Certifi ed for use in USA & Canada Certifi é pour une utilisation aux Etats-Unis et Canada

Tested to U/L Standards 737


zirdim1.jpg - 7366 Bytes
Model
A
B
C
D
E
T
V
X
Y
Z
Zircon 30
96"
30"
31"
7" 20.5"47"10" 15.5"32" 15.5"
Zircon 34
96"
34"30.5"8"
26"
49"10" 16"32" 16"
Zircon 38101"38"36.5"9"
28"
44"10" 16.5"32"16.5"

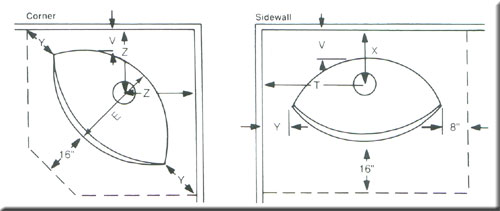

zirdim.jpg - 16490 Bytes

Zircon 30" Installation Intructions PDF

Zircon 34" Installation Intructions PDF

Zircon 38" Installation Intructions PDF
